自动电脑心肺复苏模拟人 KM/CPR480S

产品介绍：

该产品结合国际心肺复苏标准，产品功能全面升级。强化胸外按压的重要性，符合现实临床CPR操作要求。
功能特点：

★瞳孔采用液晶屏模拟显示，可模拟瞳孔的缩小、正常、散大状态；抢救状态下瞳孔散大，抢救成功后瞳孔缩小对光发射恢复。
★模拟人上肢关节可自由活动。（腕关节和肘关节可屈伸、展收）模型肩关节可做屈伸及环转运动，可练习病人搬运。
★新增按压胸廓回弹不足检测，并有语音提示用户。
■ 模拟生命体征：
1）初始状态时；颈动脉无搏动，，模拟人瞳孔散大。
2）按压过程中；模拟人颈动脉被动搏动，搏动频率与按压频率一致。
3）抢救成功后；颈动脉自主搏动，模拟人瞳孔缩小，对光反射恢复。
■ 可进行标准气道开放，气道打开后指示灯亮。
■ 可进行人工手位胸外按压和人工呼吸。

★人工手位胸外按压时：

动态条码指示灯显示按压深度：按压深度正确(5-6cm区域)由条码绿灯显示、按压深度不够（小于5cm）由条码黄色、按压深度过深（大于6cm）由条码红色指示灯移动的动态反馈显示CPR按压深度。
2、液晶计数及频率的显示；详细记录按压错误的具体原因（按压过大、按压过小、按压位置错误及按压频率的过快，过慢，正确的次数等）。
3、语言提示：中文语音提示，详细提示按压错误的具体原因，以便训练者及时改正。
★人工口对口呼吸(吹气)时：
1、动态条码指示灯显示潮气量：吹入的潮气量正确（500ml~600ml-1000ml）由条码绿灯显示、吹入的潮气量过小或过大分别由条码黄色或条码红色指示灯移动的动态反馈显示潮气量度；吹气进胃时，指示灯亮。
2、液晶计数显示：详细记录吹气错误的具体原因（吹气过大、吹气不足等）；
3、语言提示：中文语音提示，详细提示吹气错误的具体原因，以便训练者及时改正。
★按压与人工呼吸比：30：2（单人或双人）。
★操作周期：有效30次按压及2次人工吹气，30：2五个循环周期CPR操作。
■ 三种操作方式：可进行CPR训练、模拟考核和实战考核。
1）方式一：CPR训练，可进行按压和吹气。
2）方式二：模式考核，在规定的时间内，根据2015国际心肺复苏标准，按压和吹气30：2的比例，完成5个循环操作，统计数据打钱成绩，自动评分系统。
3）方式三：实战考核，在设定的时间范围内，根据2015年国际心肺复苏标准，完成前期设定考核标准。老师可自行设定操作时间范围、循环次数、统计数据打印成绩。
CPR显示屏功能：
■ 电子监测：电子监测气道开放和按压部位，显示人工呼吸和心外按压的正确次数和错误次数。
■ 语音提示：训练和考核中全程中文语音提示，可开启和并闭语音，可调节音量。
■ 可设定操作时间，以秒为单位。
■ 操作频率：100-120次/分。

★操作时间：以秒为单位计时。

★检查瞳孔：缩小和散大对比。
■ 电源状态：采用220V电源，经过稳定器稳压后输出电源12V。
打印机功能：
■ 可选择操作结束后打印操作过程，成绩单打印可选择长打印（波形图成绩）或者短打印（数据成绩）。
■ 成绩单内容涵盖操作方式，每个循环操作中按压和吹气的次数、按压正确/错误次数、按压错误的原因和次数、吹气正确/错误的原因和次数、吹气错误的原因、设定时间、操作时间和考核评定。
材料特点：模拟人的脸皮可保用三年，无须更换。面皮肤、颈皮肤、胸皮肤、头发，采用进口热塑弹性体混合胶材料，由不锈钢摸具、经注塑机高温注压而成，具有解剖标志准确、手感真实、肤色统一、外形美观、经久耐用、消毒清洗不变形、拆装更换方便等特点。
标准配置：
■ 高级心肺复苏模拟人一具；
■ 高级电脑显示器一台；
■ 豪华手拉推式人体硬塑箱一只；
■ 复苏操作垫一条；
■ 一次性消毒面膜(50张/盒)一盒；
■ 可更换面皮一只；
■ 可换肺囊装置五个；
■ 热敏打印纸二卷；

■ 产品保修卡、合格证、使用说明书、急救操作手册一套。

尺寸：95*34*57cm, 23kgs.

Product Introduction:
This product integrates international CPR standards, featuring a comprehensive upgrade in functionality. It emphasizes the importance of chest compressions and meets real-world clinical CPR operation requirements.

Features:

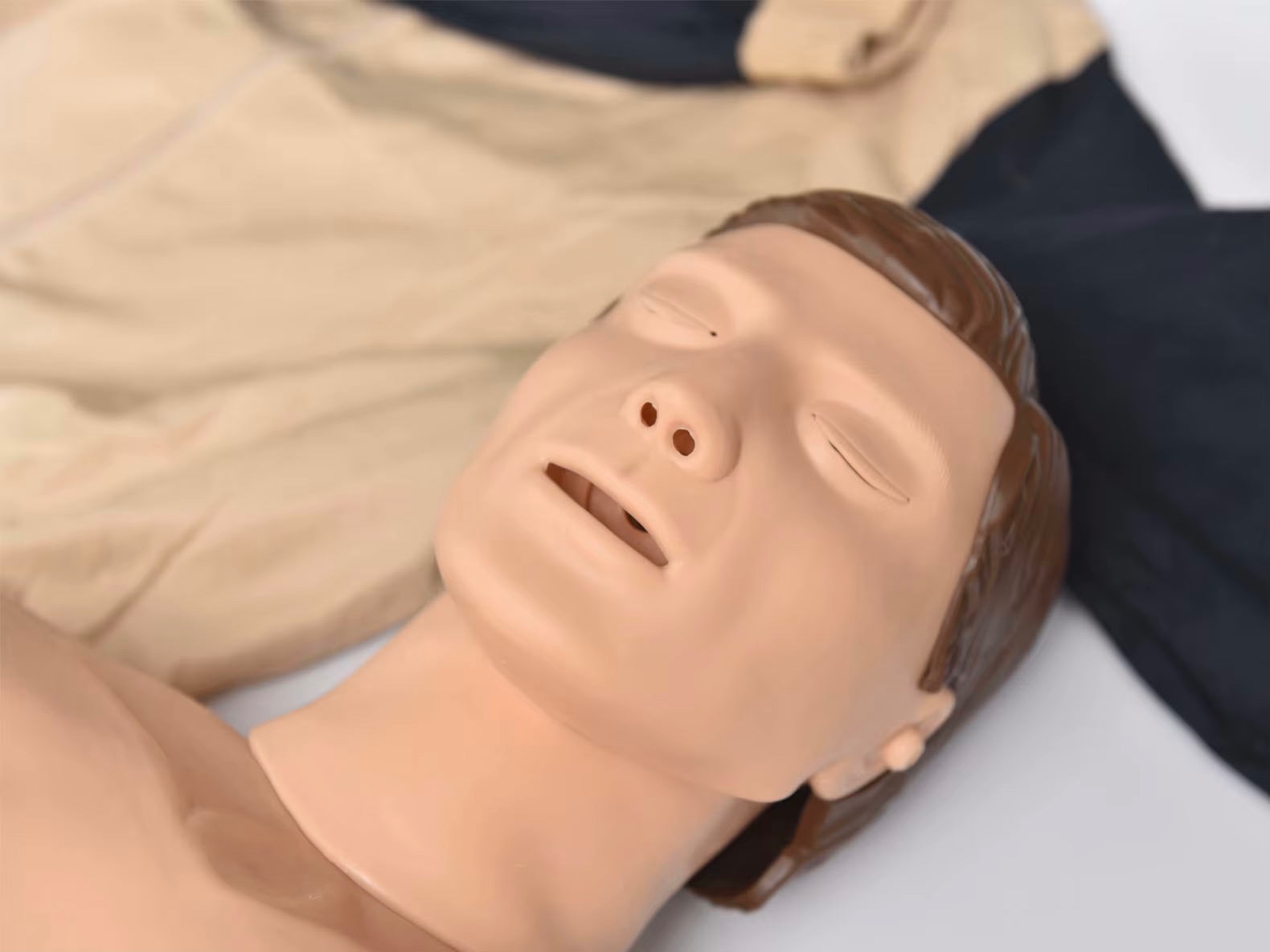

★ Pupils are simulated using an LCD screen, capable of displaying constricted, normal, and dilated states. During resuscitation, pupils dilate; after successful resuscitation, pupils constrict and light reflexes return.
★ The upper limb joints of the manikin allow free movement (wrist and elbow joints can flex, extend, abduct, and adduct). Shoulder joints support flexion, extension, and circumduction motions, enabling practice in patient transfer techniques.
★ New feature: detection of insufficient chest recoil during compressions, with voice prompts to guide users.
■ Simulated Vital Signs:

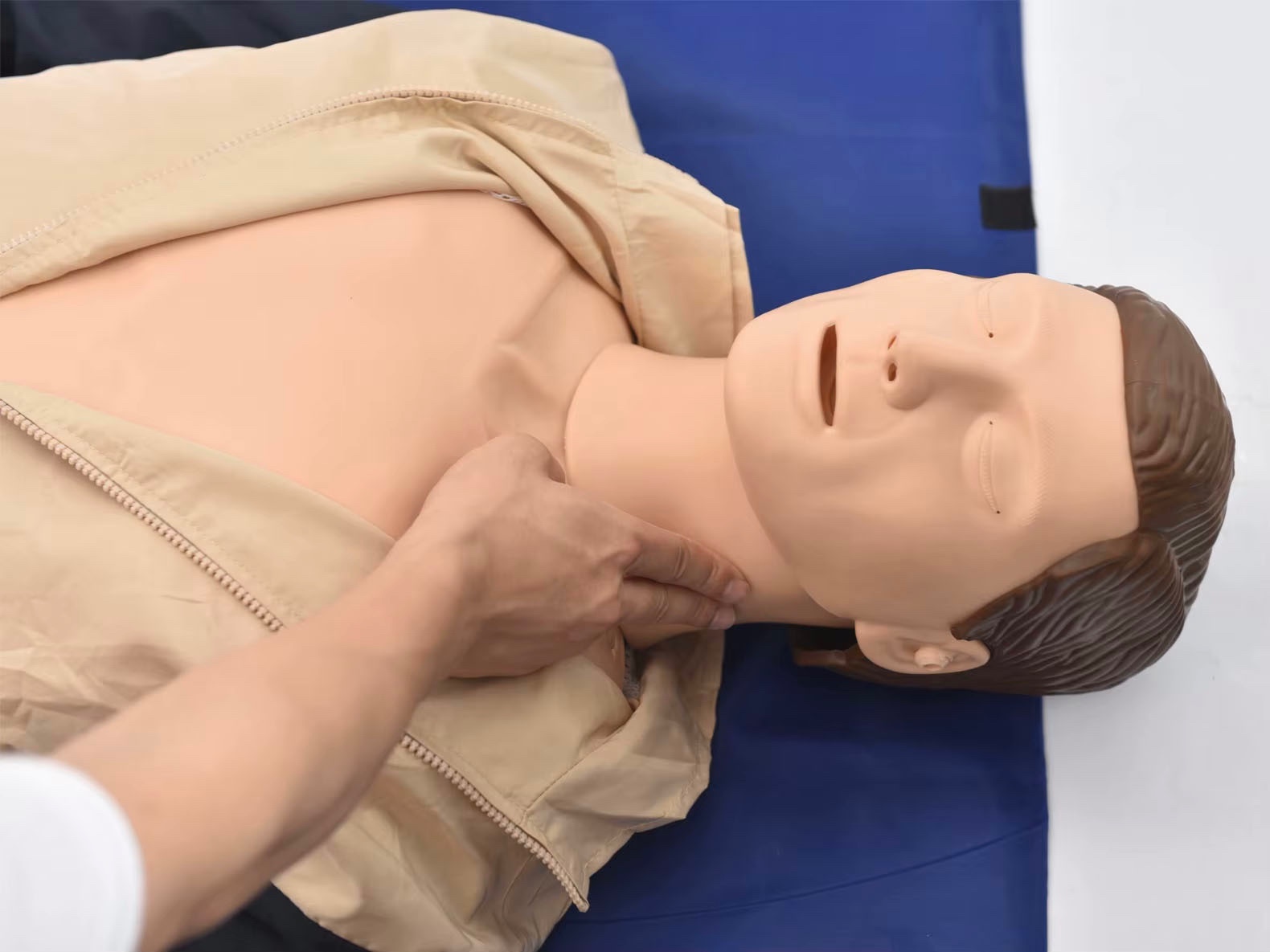

1) Initial state: No carotid pulse; pupils are dilated.
2) During compression: Passive carotid pulse occurs, synchronized with compression frequency.
3) After successful resuscitation: Autonomous carotid pulse resumes; pupils constrict and light reflex returns.
■ Standard airway opening supported; indicator light turns on when airway is properly opened.
■ Supports manual chest compressions and artificial ventilation.

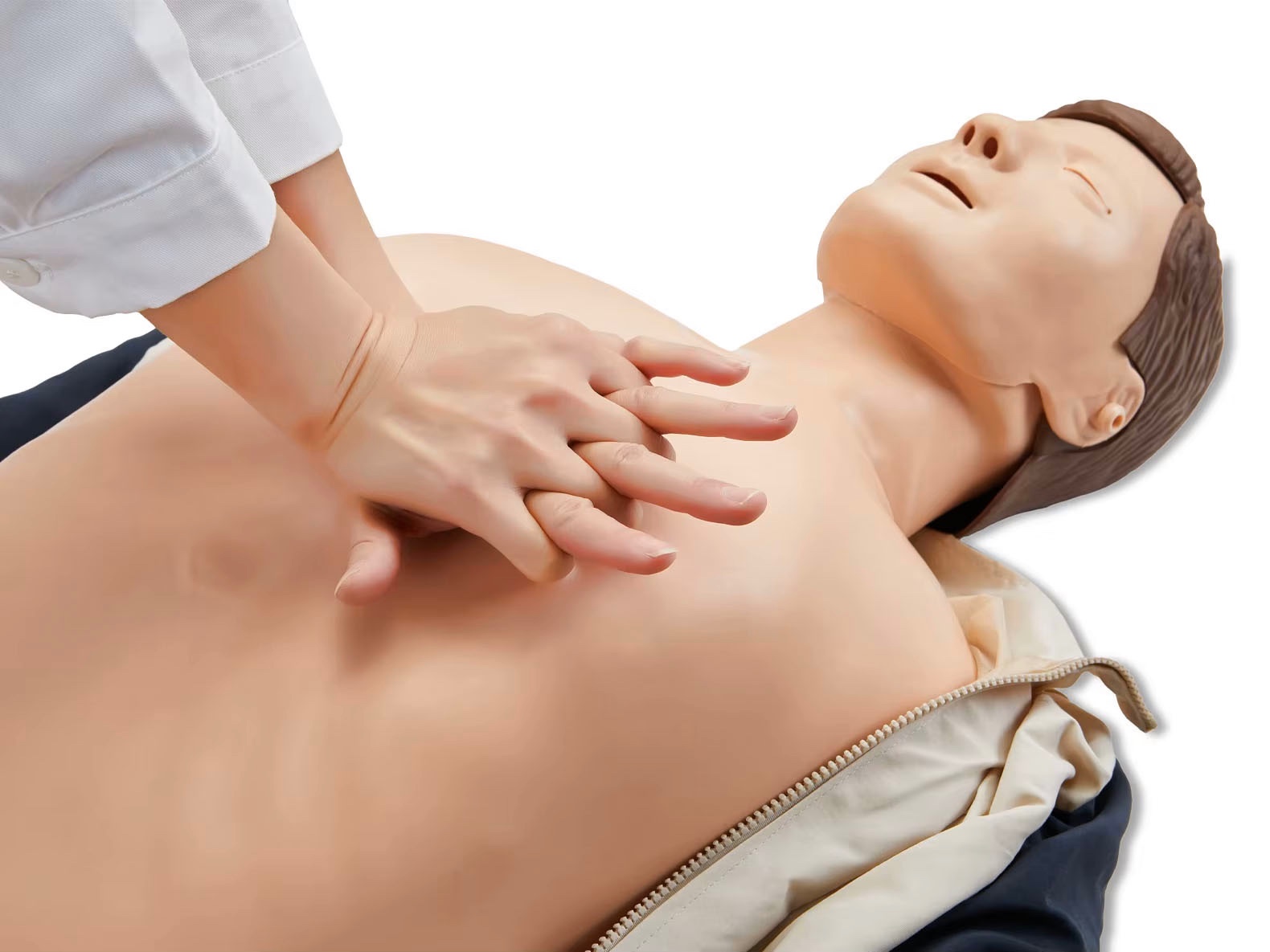

★ Manual Chest Compressions:
- Dynamic barcode indicator displays compression depth: Green indicates correct depth (5–6 cm), yellow indicates insufficient depth (<5 cm), and red indicates excessive depth (>6 cm), providing dynamic feedback for accurate CPR depth.
- LCD display shows count and frequency; records detailed error reasons such as excessive or insufficient compression, incorrect compression location, too fast or slow compression rate, and number of correct compressions.
- Voice prompts: Chinese audio feedback clearly explains specific errors, helping trainees correct mistakes promptly.
★ Artificial Mouth-to-Mouth Ventilation:
1) Dynamic barcode indicator displays tidal volume: Green indicates proper tidal volume (500–1000 ml); yellow or red indicates under- or over-ventilation, respectively, with dynamic feedback. A separate indicator lights up if air enters the stomach.
2) LCD counter records detailed error causes (e.g., over-ventilation, under-ventilation).
3) Voice prompts: Chinese audio feedback clearly identifies ventilation errors, enabling immediate correction.
★ Compression-to-Ventilation Ratio: 30:2 (for single or two rescuers).
★ Operation Cycle: Five cycles of 30 effective compressions followed by 2 ventilations (30:2 ratio).
■ Three Operation Modes: CPR training, simulation assessment, and practical evaluation.
1) Mode 1: CPR Training – allows both compressions and ventilations.
2) Mode 2: Assessment Mode – within a set time, perform five cycles of 30:2 compressions and ventilations according to 2015 International CPR guidelines. System automatically calculates scores and provides results.
3) Mode 3: Practical Evaluation – within a preset time frame, complete pre-defined assessment criteria based on 2015 International CPR standards. Instructors can customize operation duration, number of cycles, and print performance reports.
CPR Display Functions:
■ Electronic Monitoring: Monitors airway opening and compression location, displaying counts of correct and incorrect compressions and ventilations.
■ Voice Prompts: Continuous Chinese audio guidance during training and assessment; voice can be turned on/off and volume adjusted.
■ Adjustable Operation Time: Set in seconds.
■ Compression Rate: 100–120 compressions per minute.
★ Timing: Measured in seconds.
★ Pupil Inspection: Contrast between constricted and dilated pupils.
■ Power Supply: 220V input, stabilized to output 12V DC via voltage regulator.
Printer Function:
■ The system allows printing of the operation process after completion, with options for long print (waveform-based results) or short print (data-based results).
■ The score report includes operation mode, number of compressions and breaths per cycle, correct/incorrect compression counts, reasons and frequency of compression errors, reasons and frequency of correct/incorrect breaths, causes of breathing errors, preset time, actual operation time, and assessment evaluation.
Material Features:

The manikin's facial skin is durable for three years without replacement. The face, neck, chest skin, and hair are made from imported thermoplastic elastomer composite material, molded using stainless steel molds and high-temperature injection molding machines. This ensures accurate anatomical landmarks, realistic tactile sensation, uniform skin tone, attractive appearance, long service life, resistance to deformation during disinfection and cleaning, and convenient disassembly and replacement.

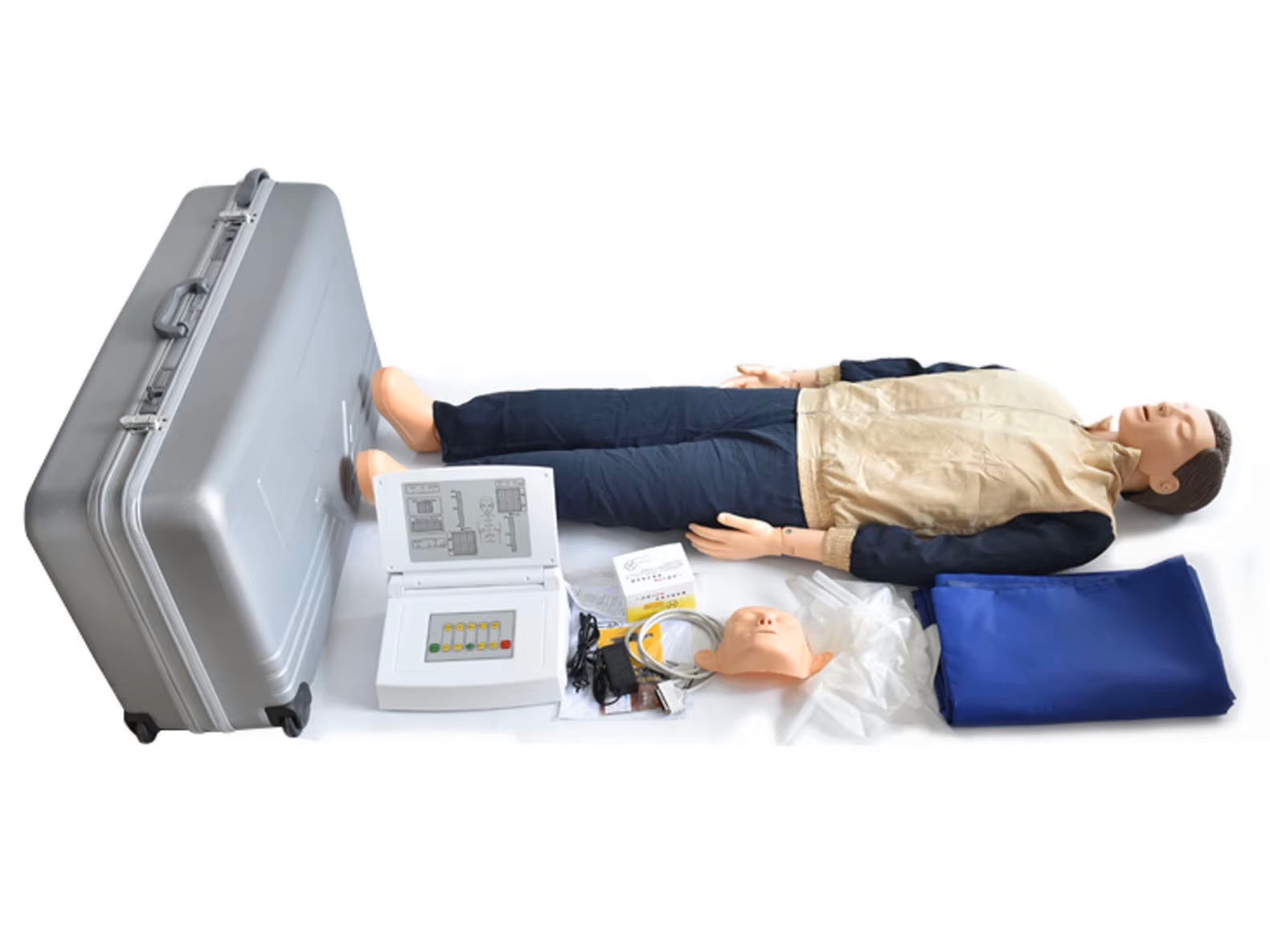

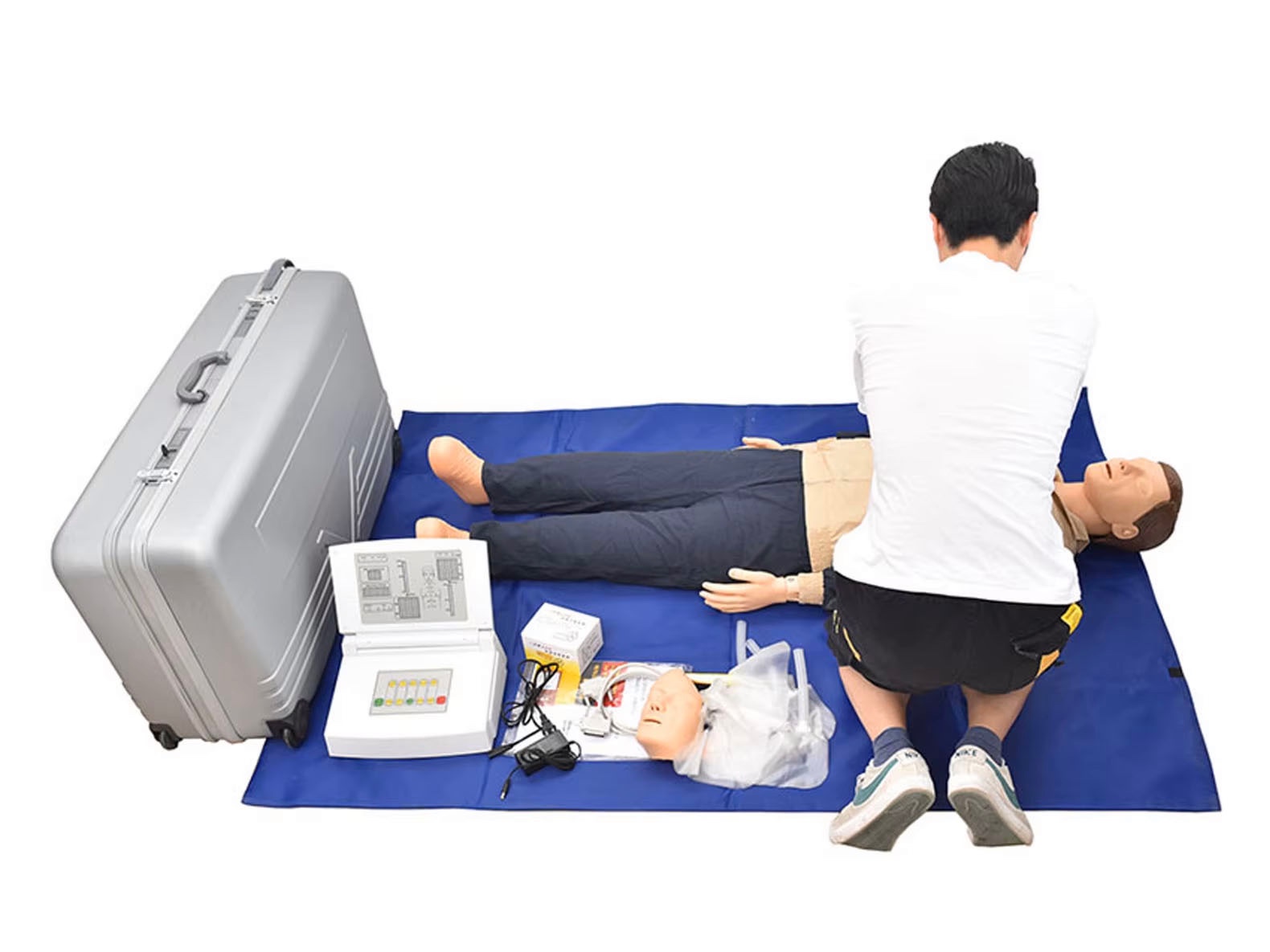

Standard Configuration:
■ One advanced CPR training manikin;
■ One advanced computer monitor;
■ One deluxe hand-pulled hard plastic case;
■ One CPR training mat;
■ One box of disposable disinfectant face masks (50 pieces per box);
■ One replaceable face cover;
■ Five replaceable lung bag units;
■ Two rolls of thermal-sensitive printing paper;
■ A complete set including warranty card, certificate of conformity, user manual, and emergency resuscitation operation guide.
Dimensions: 95*34*57cm, 23kg.
