多功能急救训练模拟人（心肺复苏与气管插管综合功能）KM/ALS800

产品介绍：

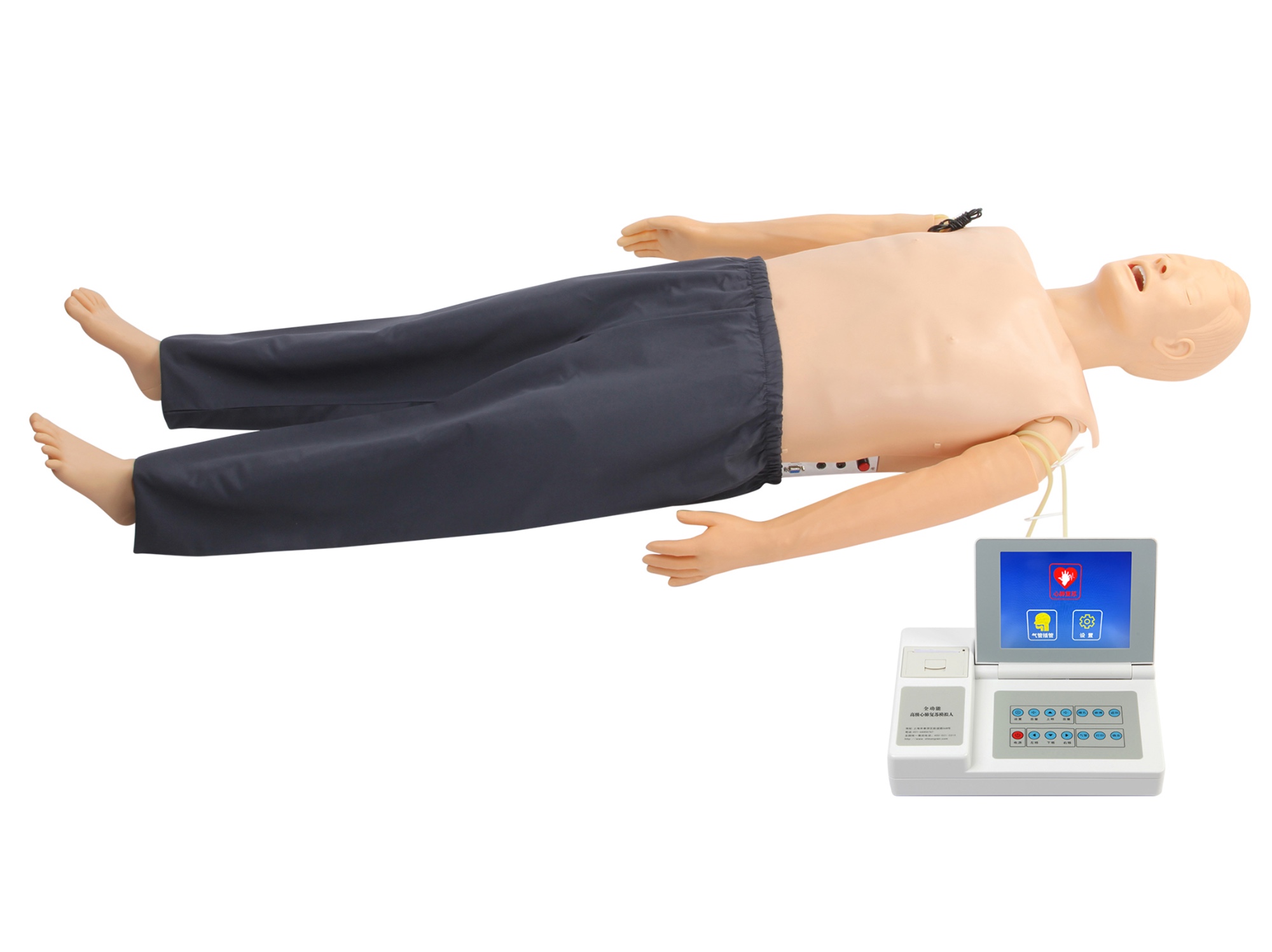

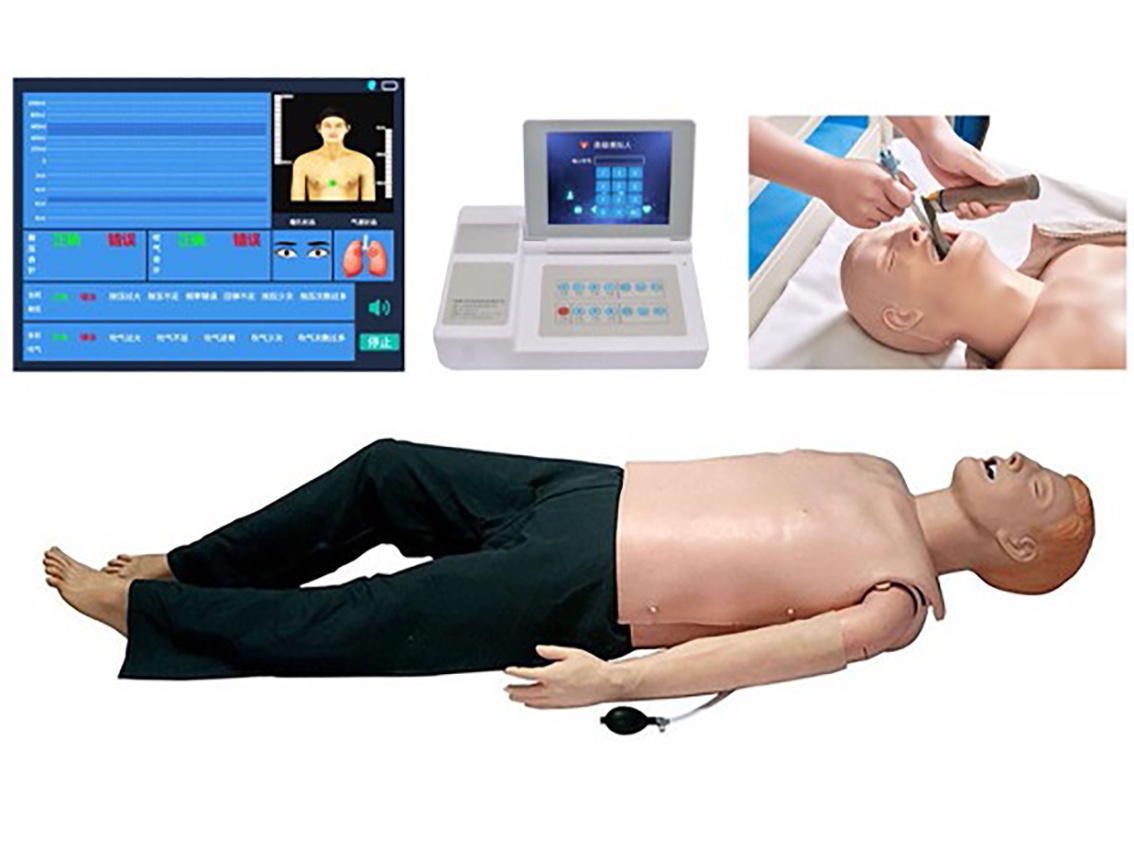

本系统提供ACLS综合急救技能系统。产品适用于各大医院、医学院、卫校急救模拟操作。系统包括模拟病人、大屏幕液晶显示器、模拟AED,可进行心肺复苏、气管插管等操作。

功能特点：
■ 双控制器采用8英寸彩色液晶触摸显示屏，可直接进行一体式操作，也可使用按键操作。

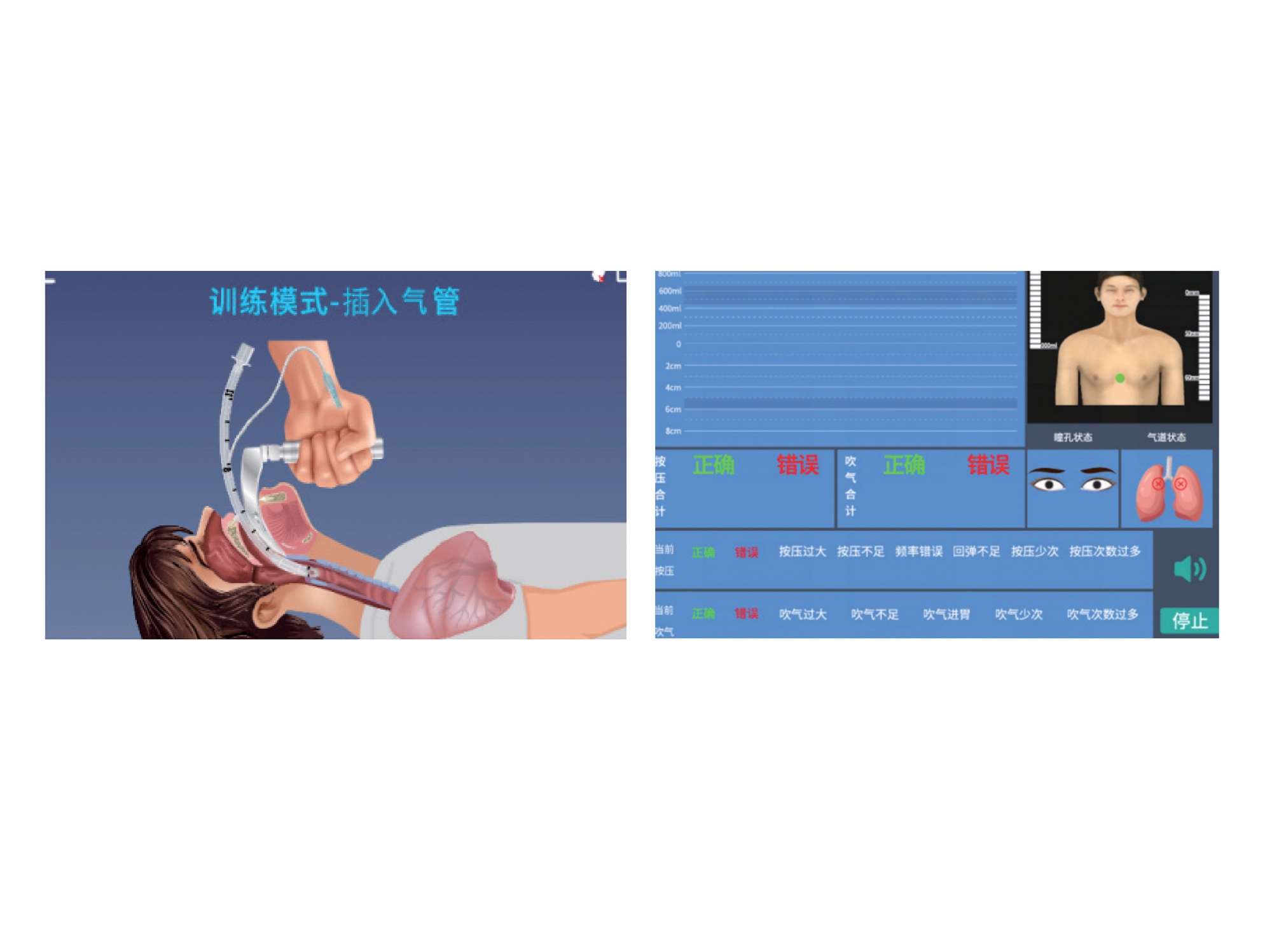

■ 气道管理：标准口、鼻气道插管，支持仰头、抬下颌、牙齿受压报警，操作正确错误有液晶屏直观显示，具有仰头3D动画。

■ 具有新型电子遥控功能，可通过遥控器进行操作。

■ 瞳孔采用液晶屏模拟显示，可模拟瞳孔的缩小、正常、散大状态；抢救状态下瞳孔散大，抢救成功后瞳孔缩小对光反射恢复，颈动脉搏动。

■ CPR功能具有三种模式：

1.训练模式：在设定的时间和范围内，进行按压和吹气。

2.考核模式：在设定的时间和范围内，根据国际心肺复苏标准，正确按压30次和正确吹气2次为一次正确的30:2循环，完成5个循环。

3.实战模式：在设定的时间和范围内，根据国际心肺复苏标准，按压和吹气30：2的比例操作，完成5个操作循环。

★采用红外测距感应模块，按压时更精确。

★由矩形或波形图动态反馈CPR按压深度及吹气力度。

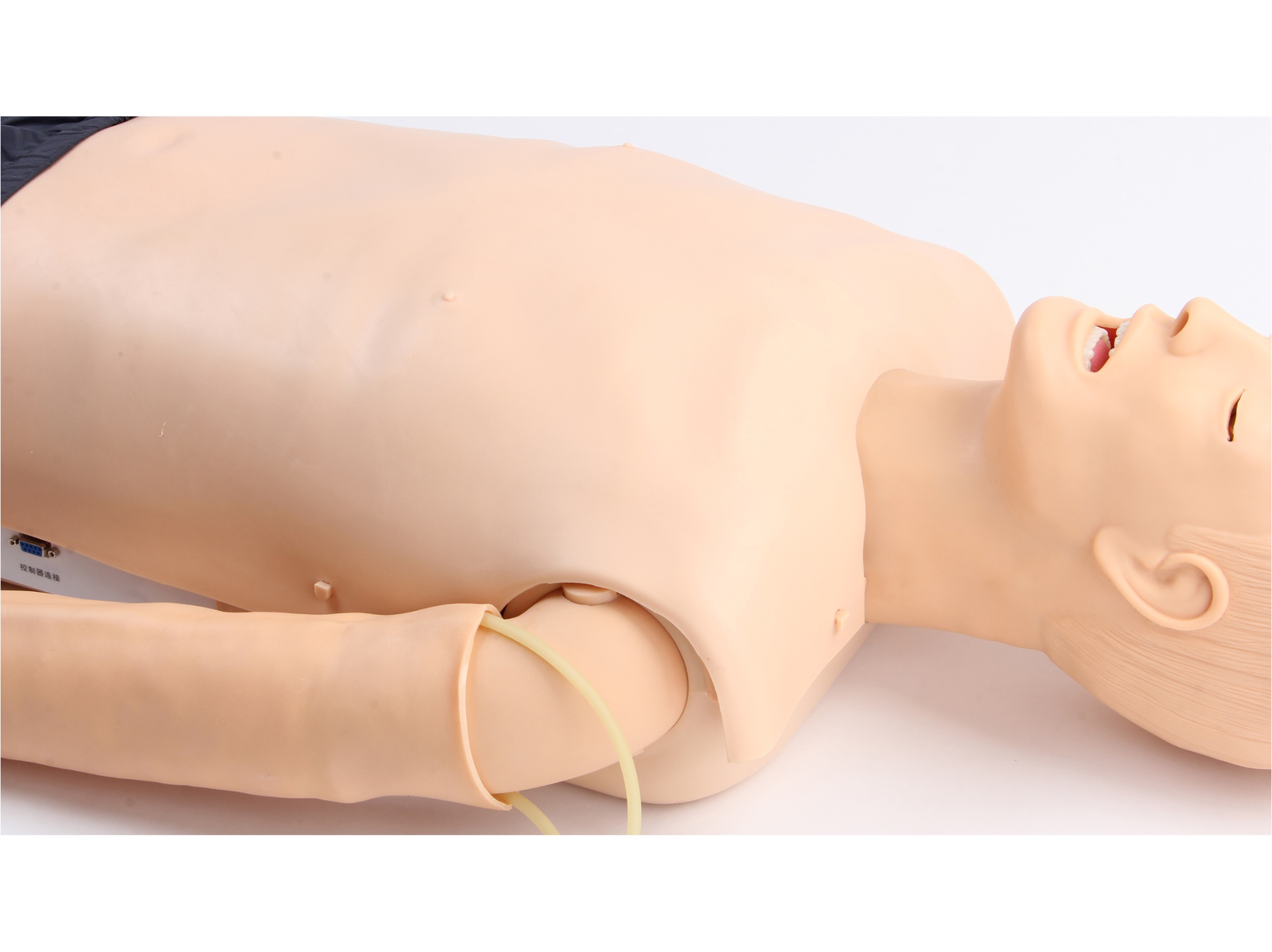

■ 可进行股外侧肌肉注射操作训练以及静脉注射训练。

★模拟人踝关节可左右旋转。

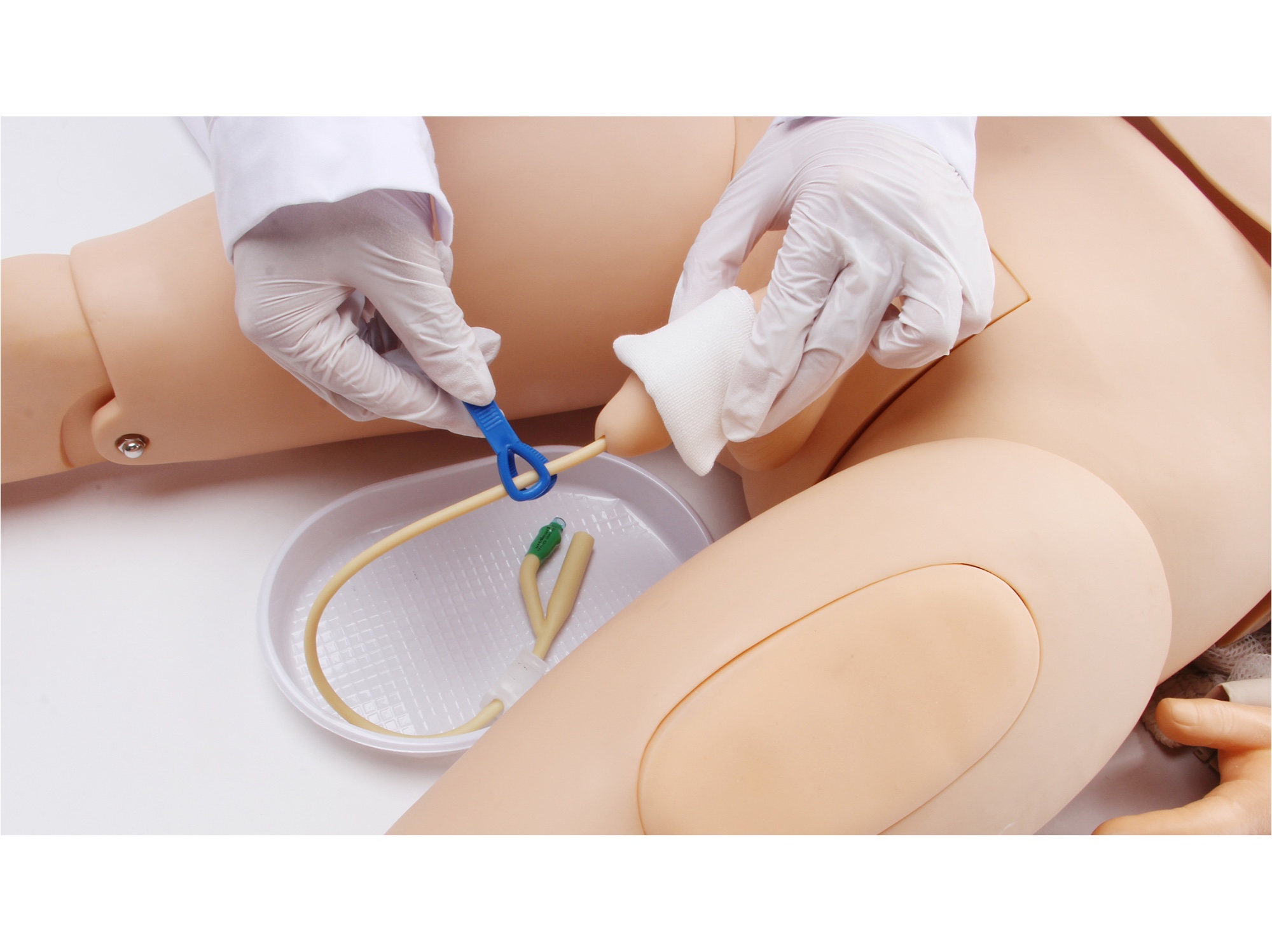

★模拟人可互换男女外生殖器，可进行导尿操作训练。

★模拟人可与控制器无线连接（无线版）。

标准配置：
■ 八英寸彩色液晶触摸屏；

■ 智能成人ACLS模拟人；

■ 麻醉咽喉镜；

■ 无线遥控器（无线版）；

其他可选配置：
■ 气道管理组件；

■ KM/AED98F自动体外除颤仪；

■ 真实心脏除颤起搏器；

■ KM/S7G血压测量训练仪。

尺寸：97*51*33cm,15kgs, 73*50*34cm,12.5kgs, 53*32*26cm,5kgs

Product Introduction:
This system provides a comprehensive ACLS emergency resuscitation skills training solution. It is suitable for use in major hospitals, medical schools, and nursing colleges for simulation-based emergency training. The system includes a manikin, a large-screen LCD display, and a simulated AED, enabling realistic practice of CPR, endotracheal intubation, and other critical procedures.
Features:
■ Dual controllers feature 8-inch color LCD touchscreens, allowing direct one-touch operation or traditional button control.
■ Airway management: supports standard oral and nasal intubation with head-tilt chin-lift technique; includes tooth pressure alarm and real-time visual feedback on correct/incorrect actions via LCD screen; features 3D animation of head tilt.
■ Equipped with advanced electronic remote control functionality, enabling operation via wireless remote.
■ Pupil response is simulated using an LCD display, capable of showing constricted, normal, and dilated pupils. During resuscitation, pupils dilate; upon successful resuscitation, pupils constrict and light reflexes return, along with restored carotid pulse.
■ CPR function offers three modes:
1. Training Mode: Perform compressions and ventilations within a set time and range.
2. Assessment Mode: Based on international CPR standards, correctly perform 30 compressions followed by 2 breaths to complete one full 30:2 cycle; five cycles must be completed.
3. Realistic Practice Mode: Follow the international CPR ratio of 30 compressions to 2 breaths within a specified timeframe and complete five operational cycles.
★ Utilizes infrared distance-sensing module for more accurate compression depth detection.
★ Provides dynamic rectangular or waveform feedback on CPR compression depth and ventilation force.
■ Supports training in intramuscular injection (outer thigh) and intravenous injection techniques.
★ Manikin’s ankle joint allows rotation left and right.
★ Manikin features interchangeable male and female genitalia for catheterization training.
★ Manikin can wirelessly connect to the controller (wireless version).
Standard Configuration:
■ 8-inch color LCD touchscreen
■ Intelligent adult ACLS manikin
■ Laryngoscope
■ Wireless remote control (wireless version)
Optional Configurations:
■ Airway management kit
■ KM/AED98F Automated External Defibrillator
■ Real cardiac defibrillator/pacemaker
■ KM/S7G Blood Pressure Measurement Trainer
Dimensions: 97*51*33cm, 15kgs, 73*50*34cm, 12.5kgs, 53*32*26cm, 5kgs.
