儿童心肺复苏模拟人 KM/CPR170

产品介绍：

该产品根据五岁儿童的解剖特征和生理特点设计，其核心模块包括模拟人和电子显示屏，可进行儿童心肺复苏训练，实现电子监测人工呼吸时吹气量和手指位按压时按压深度。适用于社会心肺复苏培训机构、医院、医学院、卫校等进行儿童心肺复苏培训的合适产品。

执行标准：美国心脏学会（AHA)国际心肺复苏（CPR)&心血管急救（ECC)指南标准。

功能特点：
■ 按压胸廓回弹不足检测，并伴有语音提示用户。

■ 操作时间数码显示。

■ 人工手指位胸外按压正确和错误均有数字计数显示及语音播报提示：

1）正确按压深度至少为胸部前后径的1/3大约为5cm；

2）按压深度不足由黄色指示灯显示并有语音播报提示；

3）按压深度正确由绿色指示灯显示并有语音播报提示；

4）按压深度过大由红色指示灯显示并有语音播报提示；

■ 人工口对口呼吸（吹气）正确和错误均有数字计数显示及语音播报提示：

1）正确吹入的潮气量为150ml-200ml；

2）吹入的潮气量过小由黄色指示灯显示并有语音播报提示；

3）吹入的潮气量正确由绿色指示灯显示并有语音播报提示；

4）吹入的潮气量过大由红色指示灯显示并有语音播报提示；

5）吹入的潮气量过快或超大，造成气体进入胃部由吹气进胃指示灯显示并有语音播报提示；

■ CPR操作流程为有线单机版训练模式。

■ 操作频率：国际标准：100-120次/分。

■ 电子控制器可暂停、复位CPR操作，调节音量大小，一键静音。

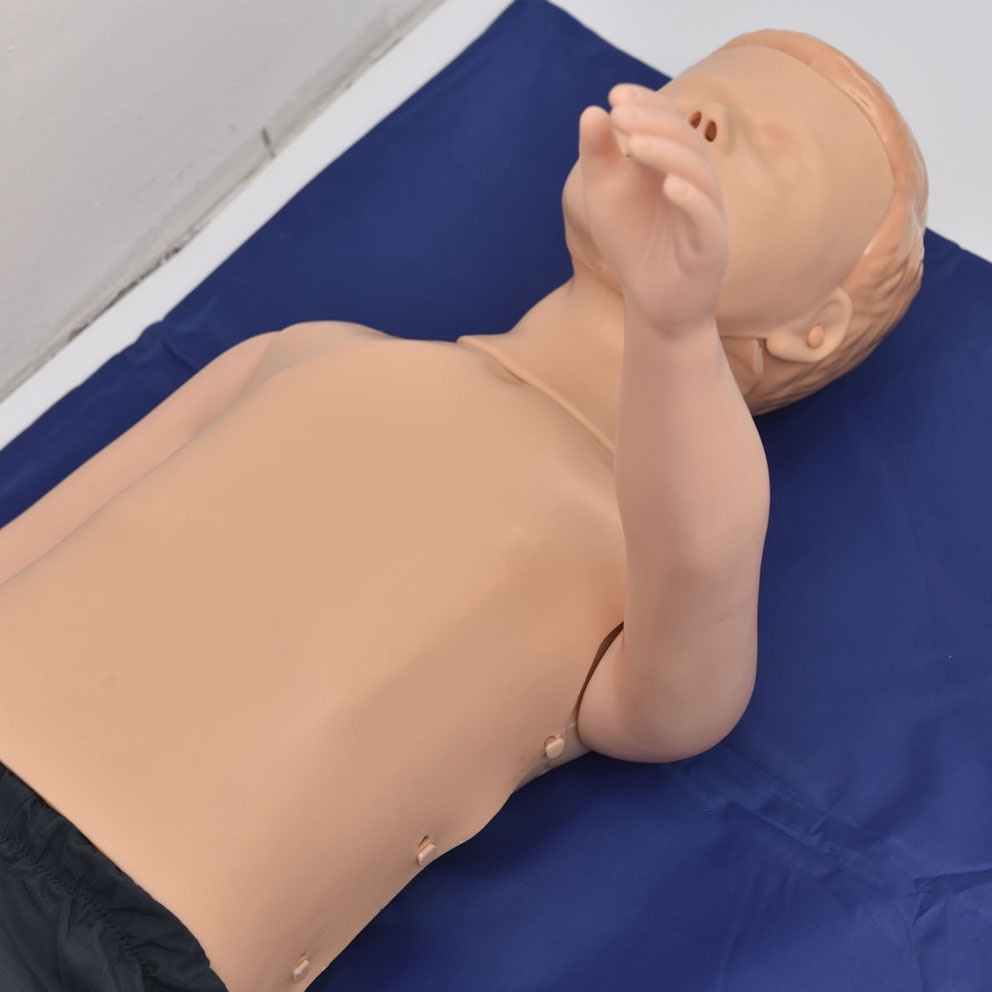

■ 检查肱动脉反应：手捏压力皮球，模拟肱动脉搏动。

■ 工作状态：采用输入110V/220V输出12V/2A外接电源，可选配锂电池。

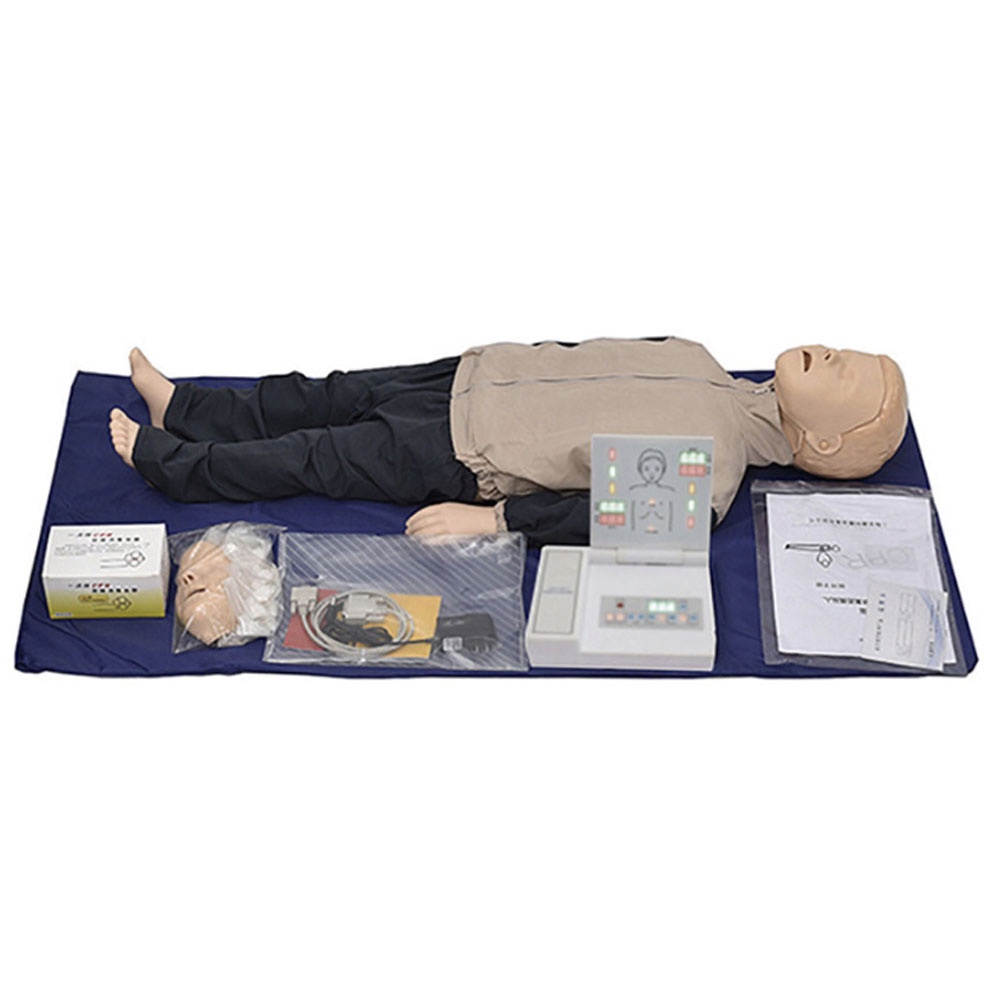

标准配置：
■ 高级复苏儿童人体模型一具；
■ 电子显示器一台；

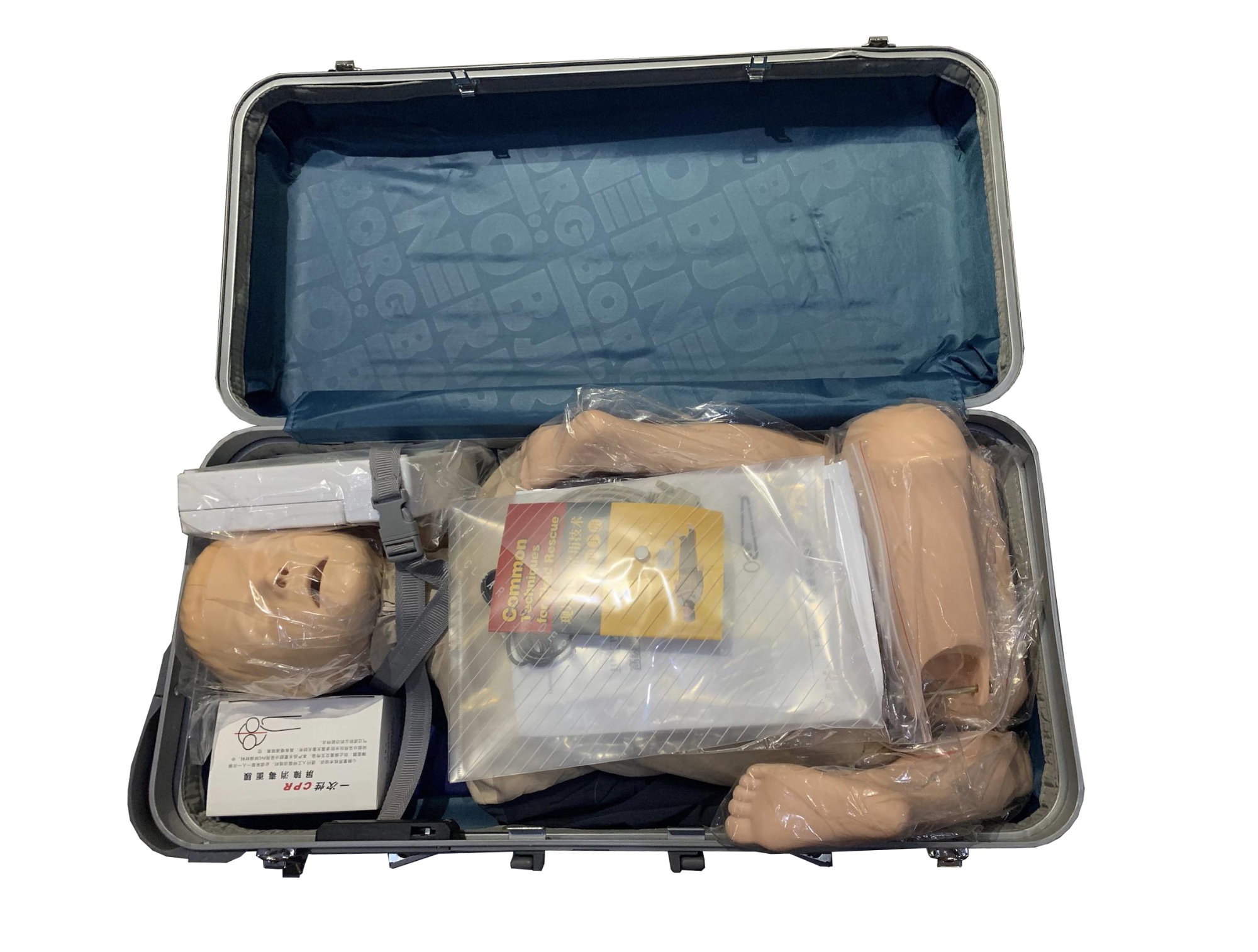

■ 便携式人体硬塑箱一个；
■ 复苏操作垫一条；
■ 屏幕面膜（50张/盒）一盒；
■ 可换肺囊装置四套；
■ 可换面皮一只；
■ 产品保修卡、合格证、使用说明书、急救操作手册一套。

尺寸：80*30*40cm, 11.2kgs.



Product Introduction:
This product is designed based on the anatomical and physiological characteristics of five-year-old children. Its core components include a manikin and an electronic display, enabling pediatric CPR training with electronic monitoring of ventilation volume during artificial respiration and compression depth during chest compressions. It is ideal for use in CPR training institutions, hospitals, medical schools, nursing colleges, and other organizations conducting pediatric CPR training.
Compliance Standard: American Heart Association (AHA) International Guidelines for Cardiopulmonary Resuscitation (CPR) & Emergency Cardiovascular Care (ECC).
Features:
■ Detects insufficient chest recoil during compressions and provides voice prompts to users.
■ Digital display of operation time.
■ Digital count and voice feedback for correct and incorrect manual chest compressions:
1) Correct compression depth should be at least one-third of the anteroposterior diameter of the chest, approximately 5 cm;
2) Insufficient compression depth indicated by yellow light with voice prompt;
3) Correct compression depth indicated by green light with voice prompt;
4) Excessive compression depth indicated by red light with voice prompt.
■ Digital count and voice feedback for correct and incorrect mouth-to-mouth ventilation (breathing):
1) Correct tidal volume: 150–200 ml;
2) Insufficient tidal volume indicated by yellow light with voice prompt;
3) Correct tidal volume indicated by green light with voice prompt;
4) Excessive tidal volume indicated by red light with voice prompt;
5) Excessively rapid or excessive ventilation causing air entry into the stomach indicated by gastric inflation indicator light with voice prompt.
■ CPR operation follows a wired standalone training mode.
■ Compression rate: International standard—100–120 compressions per minute.
■ Electronic controller allows pausing and resetting of CPR operations, volume adjustment, and one-button mute function.
■ Brachial artery response check: Squeeze the pressure ball to simulate brachial pulse.
■ Power supply: External power adapter input 110V/220V, output 12V/2A; optional lithium battery available.
Standard Configuration:
■ One advanced pediatric CPR training manikin
■ One electronic display unit
■ One portable hard plastic carrying case
■ One CPR training mat
■ One box of screen face masks (50 pieces per box)
■ Four sets of replaceable lung bags
■ One replaceable face skin cover
■ One set including warranty card, certificate of conformity, user manual, and emergency care operation guide
Dimensions: 80*30*40cm, 11.2kgs.
